# Produktdaten

## **Modellspezifikationen**

{% tabs %}
{% tab title="Metric" %}

| ROTAX®         | Drehmoment Mn \[mNm] | Drehmoment Mp \[mNm] | Enocder Auflösung \[Ink/U] |
| -------------- | -------------------: | -------------------: | -------------------------: |
| Rxvp 28-6T0.04 |                   40 |                  110 |                      64000 |

Dauerbetrieb mit Umgebungstemperatur von 25°C und Konvektionskühlung (Umgebungsluft)

Kurzbetrieb (Einschaltdauer 10%)

<table><thead><tr><th width="329.59088134765625">ROTAX®</th><th width="124.5" align="right">Welle [mm]</th><th width="161.75" align="right">Gewicht Total [g]</th><th>Art. Nr.</th></tr></thead><tbody><tr><td>Rxvp 28-6T0.04, 30mm, ø4</td><td align="right">ø6 x 30</td><td align="right">180</td><td>121.00.00</td></tr><tr><td>Rxvp 28-6T0.04, 30mm, M5</td><td align="right">ø6 x 30</td><td align="right">180</td><td>121.00.01</td></tr><tr><td>Rxvp 28-6T0.04, 30mm, N.C.</td><td align="right">ø6 x 30</td><td align="right">180</td><td>121.00.02</td></tr><tr><td>Rxvp 28-6T0.04, 15mm, M5</td><td align="right">ø6 x 15</td><td align="right">175</td><td>121.00.10</td></tr><tr><td>Rxvp 28-6T0.04, 15mm, ø4</td><td align="right">ø6 x 15</td><td align="right">175</td><td>121.00.11</td></tr><tr><td>Rxvp 28-6T0.04, 15mm, N.C.</td><td align="right">ø6 x 15</td><td align="right">175</td><td>121.00.12</td></tr><tr><td>Rxvp 28-6T0.04, Ex Geko, 30mm, ø4</td><td align="right">ø6 x 30</td><td align="right">200</td><td>121.01.00</td></tr><tr><td>Rxvp 28-6T0.04, Ex Geko, 30mm, M5</td><td align="right">ø6 x 30</td><td align="right">200</td><td>121.01.01</td></tr><tr><td>Rxvp 28-6T0.04, Ex Geko, 30mm, N.C.</td><td align="right">ø6 x 30</td><td align="right">200</td><td>121.01.02</td></tr><tr><td>Rxvp 28-6T0.04, Ex Geko, 15mm, M5</td><td align="right">ø6 x 15</td><td align="right">195</td><td>121.01.10</td></tr><tr><td>Rxvp 28-6T0.04, Ex Geko, 15mm, ø4</td><td align="right">ø6 x 15</td><td align="right">195</td><td>121.01.11</td></tr><tr><td>Rxvp 28-6T0.04, Ex Geko, 15mm, N.C.</td><td align="right">ø6 x 15</td><td align="right">195</td><td>121.01.12</td></tr></tbody></table>
{% endtab %}

{% tab title="Imperial" %}

| ROTAX®         | Drehmoment Mn \[lbf·in] | Drehmoment Mp \[lbf·in] | Encoder Auflösung \[Ink/U] |
| -------------- | ----------------------: | ----------------------: | -------------------------: |
| Rxvp 28-6T0.04 |                    0.35 |                    0.97 |                      64000 |

Dauerbetrieb mit Umgebungstemperatur von 25°C und Konvektionskühlung (Umgebungsluft)

Kurzbetrieb (Einschaltdauer 10%)

| ROTAX®                              | Shaft \[inch] | Total Weight \[lbs] | Part No.  |
| ----------------------------------- | ------------: | ------------------: | --------- |
| Rxvp 28-6T0.04, 30mm, ø4            |  Ø0.24 x 1.18 |                0.40 | 121.00.00 |
| Rxvp 28-6T0.04, 30mm, M5            |  Ø0.24 x 1.18 |                0.40 | 121.00.01 |
| Rxvp 28-6T0.04, 30mm, N.C.          |  Ø0.24 x 1.18 |                0.40 | 121.00.02 |
| Rxvp 28-6T0.04, 15mm, M5            |  Ø0.24 x 0.59 |                0.39 | 121.00.10 |
| Rxvp 28-6T0.04, 15mm, ø4            |  Ø0.24 x 0.59 |                0.39 | 121.00.11 |
| Rxvp 28-6T0.04, 15mm, N.C.          |  Ø0.24 x 0.59 |                0.39 | 121.00.12 |
| Rxvp 28-6T0.04, Ex Geko, 30mm, ø4   |  Ø0.24 x 1.18 |                0.44 | 121.01.00 |
| Rxvp 28-6T0.04, Ex Geko, 30mm, M5   |  Ø0.24 x 1.18 |                0.44 | 121.01.01 |
| Rxvp 28-6T0.04, Ex Geko, 30mm, N.C. |  Ø0.24 x 1.18 |                0.44 | 121.01.02 |
| Rxvp 28-6T0.04, Ex Geko, 15mm, M5   |  Ø0.24 x 0.59 |                0.43 | 121.01.10 |
| Rxvp 28-6T0.04, Ex Geko, 15mm, ø4   |  Ø0.24 x 0.59 |                0.43 | 121.01.11 |
| Rxvp 28-6T0.04, Ex Geko, 15mm, N.C. |  Ø0.24 x 0.59 |                0.43 | 121.01.12 |
| {% endtab %}                        |               |                     |           |
| {% endtabs %}                       |               |                     |           |

***

## Modellübersicht

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_30mm.png" alt=""><figcaption></figcaption></figure>

<h4 align="right"></h4>
{% endcolumn %}

{% column %}

#### Rxvp 28-6T0.04 mit 30mm Welle

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_15mm.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

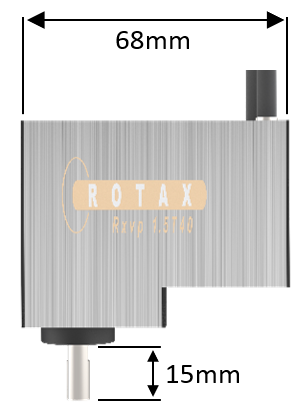

#### Rxvp 28-6T0.04 mit 15mm Welle

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_ExGeko_30mm.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

#### Rxvp 28-6T0.04 für ELAX®-Anbau mit GEKO mit 15mm Welle

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_ExGeko_15mm.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

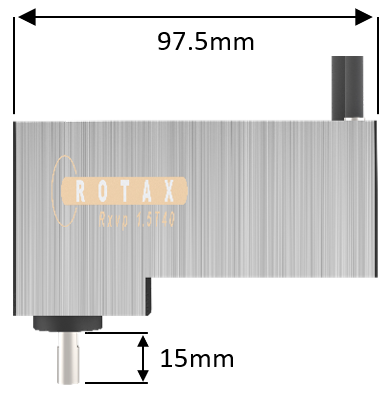

#### Rxvp 28-6T0.04 für ELAX®-Anbau mit GEKO mit 15mm Welle

{% endcolumn %}
{% endcolumns %}

***

## Vakuum-/Druckluftvarianten

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

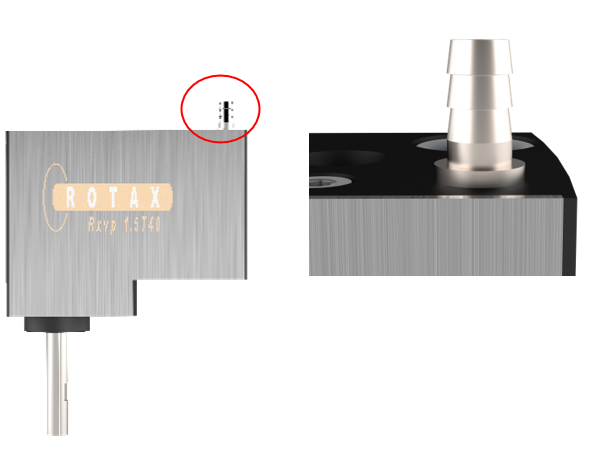

#### Mit Stecknippel Aussendurchmesser 4mm

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_Stecknippel.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Standardmässig wird der ROTAX® Rxvp mit einem Stecknippel Ø4mm, ausgeliefert.\
Empfohlener Schlauchinnendurchmesser 3mm\
Geeignet für den flanschseitigen Anbau an ELAX® Ex Linearmotor-Schlitten
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

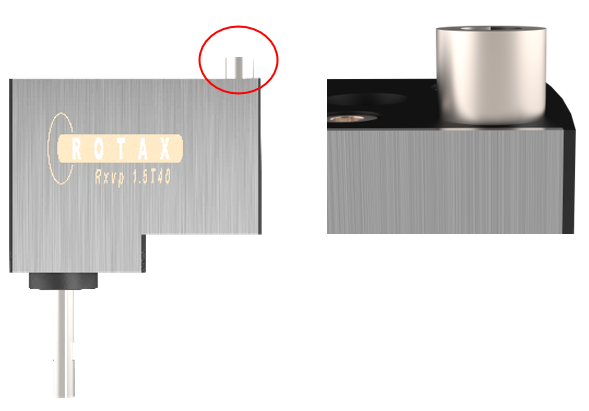

#### Mit M5 Innengewinde

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_M5.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Standardmässig wird der ROTAX® Rxvp mit einem Stecknippel Ø4mm, ausgeliefert.\
Empfohlener Schlauchinnendurchmesser 3mm\
Geeignet für den flanschseitigen Anbau an ELAX® Ex Linearmotor-Schlitten
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

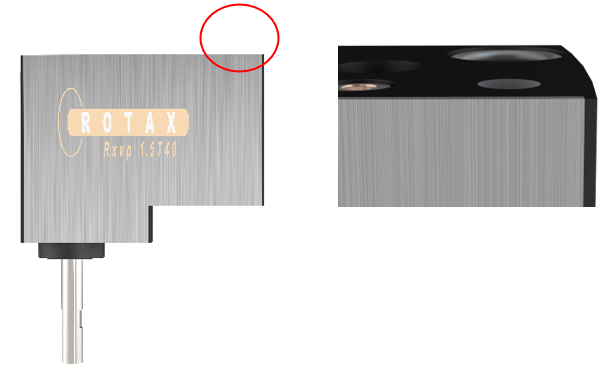

#### Mit Blindstopfen

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_Blindstopfen.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Standardmässig wird der ROTAX® Rxvp mit einem Stecknippel Ø4mm, ausgeliefert.\
Empfohlener Schlauchinnendurchmesser 3mm\
Geeignet für den flanschseitigen Anbau an ELAX® Ex Linearmotor-Schlitten
{% endcolumn %}
{% endcolumns %}


---
