# Präzisionsdaten

## Positioniergenauigkeit

| Messsystem   | Wiederholgenauigkeit Bidirektional \[µm] | Wiederholgenauigkeit unirektional \[µm] |
| ------------ | ---------------------------------------- | --------------------------------------- |
| 64000 Ink./U | < ± 12 ws                                | < ± 20 ws                               |

***

## Mechanische Genauigkeit

Der ROTAX® Rxvp wird Standardmässig mit folgenden Toleranzen ausgeliefert

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

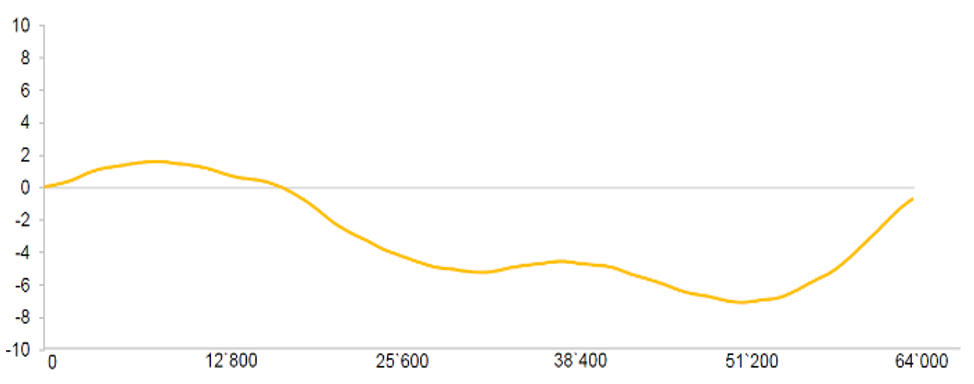

### Rundlauf

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_Rundlauf.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

<table data-header-hidden><thead><tr><th width="255.5555419921875"></th><th width="179.1112060546875"></th></tr></thead><tbody><tr><td>Rundlauf radial 15mm Schaft</td><td>&#x3C; 10 µm</td></tr><tr><td>Rundlauf radial 30mm Schaft</td><td>&#x3C; 10 µm</td></tr></tbody></table>
{% endcolumn %}
{% endcolumns %}


---
