# Modularität und Adapter

## Montagevarianten und Lochbilder

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Anbau an ELAX® Ex Frontflansch

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_AnbauAnExFrontflansch.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

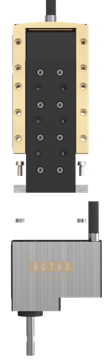

Befestigung am ELAX® Ex Frontflansch

Beispiel:

1 x ELAX® Ex50F20\
1 x ROTAX® Rxvp 28-6T0.04\
2 x Zentrierringe Ø7mm\
2 x Innensechsrund, M4 x 8mm
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Anbau an ELAX® YZ Komposition

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_AnbauAnExYZ.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

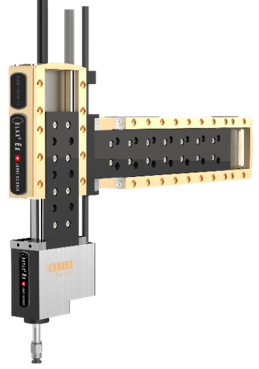

Befestigung an ELAX® YZ Komposition

Beispiel:

1 x ELAX® Ex50F20\
1 x ELAX® Ex150F20\
1 x ROTAX® Rxvp 28-6T0.04\
2 x Zentrierringe Ø7mm\
2 x Innensechsrund, M4x8mm\
1 x Schlauch & Kabeldurführung seitlich für ELAX® Z und ELAX® Y hochkant\
inkl. 4 x Torx M3 x 5mm\
2 x Torx M4 x 18\
4 x Zentrierringe Ø7mm\
2 x Zentrierstifte Ø4 x 6mm
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Anbau an LINAX® Lxu Grundplatte

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_AnbauAnLxu.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

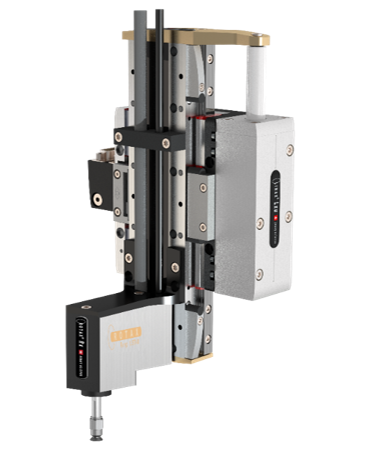

Befestigung an LINAX® Lxu Grundplatte<br>

Beispiel :

1 x LINAX® Lxu160F60\
1 x ROTAX® Rxvp 28-6T0.04\
1 x Befestigungswinkel zu LINAX® Lxu inkl. 4x Torx M4 x 8mm\
2 x Zentrierringe Ø7mm\
2 x Zentrierstifte Ø4 x 6mm
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

{% endcolumn %}
{% endcolumns %}

***

## Adapter und Montagezubehör

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_Befestigungswinkel_Lxu.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

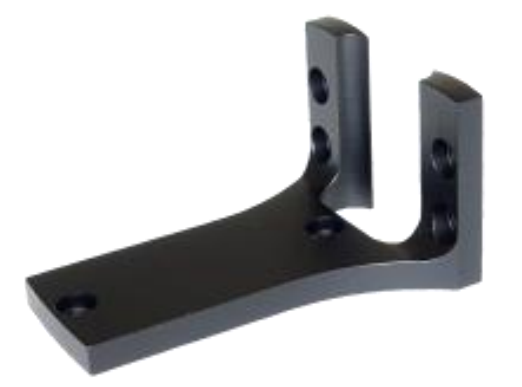

### Befestigungswinkel zu LINAX® Lxu

{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_Schlauch.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

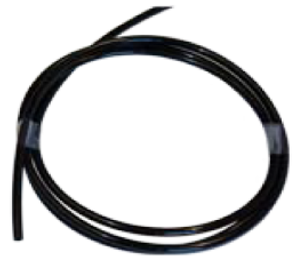

### Schlauch PUR

Aussendurchmesser 5mm

Innendurchmesser 3mm

Passen zu Stecknippel Ø4mm
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_Schaluchkupplung.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

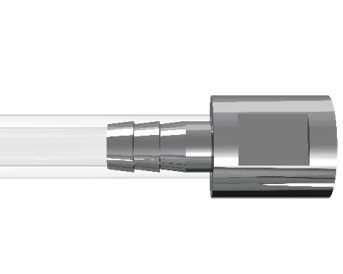

### Schlauchkupplung

Stecknippel Ø4mm mit einem M5 Innengewinde

Passen zu Schlauch PUR Innendurchmesser 3mm
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_Festo.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

### Festo QSM-M5-4l

M5 Aussengewinde\
Schlauchdurchmesser 4mm

Festo QSM-M5-6l\
M5 Aussengewinde\
Schlauchdurchmesser 6mm

Passend zu Stecknippel Ø4mm mit M5 Innengewinde
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_SchlauchUndKabel_Durch_ExSeitlich_01.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

### Schlauch und Kabeldurchführung ELAX® Ex seitlich

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_SchlauchUndKabel_Durch_ExSeitlich_02.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_SchlauchUndKabel_Durch_Lxu_01.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

### Schlauch und Kabeldurchführung LINAX® Lxu

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_SchlauchUndKabel_Durch_Lxu_02.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_SchlauchUndKabel_Durch_ExHochkant_01.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

#### Schlauch- und Kabeldurchführung ROTAX® auf ELAX® Z und ELAX® Y hochkant

{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxvp_GabelSchluessel.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

### Gabelschlüsse schmal für Vakuumwelle

{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Zentrierringe D7

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/Zentrieringe_d7.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Aussen Ø7 H7 / M5 / H2.8
