{% endcolumn %}
{% endcolumns %}
***
## Adapter und Montagezubehör
{% columns %}
{% column %}
{% endcolumn %}
{% column %}

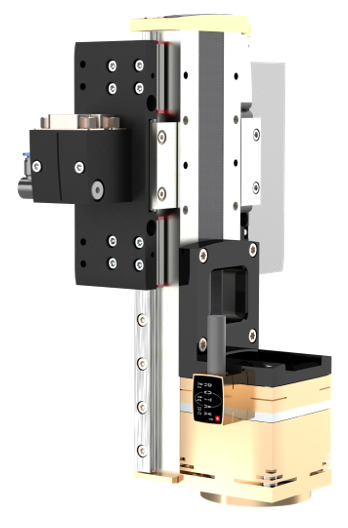

### Befestigungswinkel LINAX Lxu F60
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Raster 40 x 40mm\
2 x Zylinderstift Ø4 x 8\
4 x Innensechsrund, M4 x 14\
4 x Distanzhülse mit Zentrierung Rxhq 50-12\
4 x Inbus standard, M4 x 5
{% endcolumn %}
{% endcolumns %}
***
{% columns %}
{% column %}
{% endcolumn %}
{% column %}

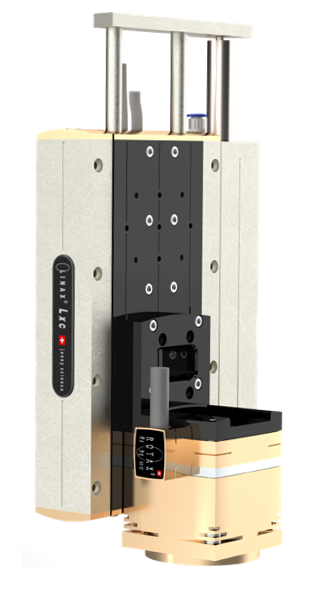

### Befestigungswinkel LINAX Lxc F10/F40
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Raster 33 x 28mm\
2 x Zylinderstift Ø2.5 x 6\
4 x Innensechsrund, M3 x 12\
4 x Distanzhülse mit Zentrierung Rxhq 50-12\
4 x Inbus Standard, M4 x 55
{% endcolumn %}
{% endcolumns %}
***
{% columns %}
{% column %}
{% endcolumn %}
{% column %}

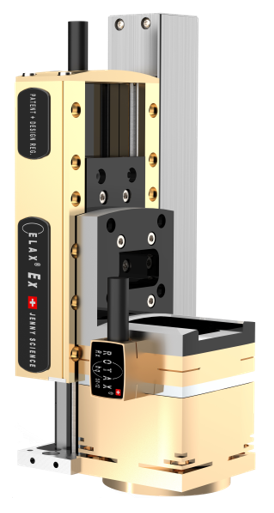

### Befestigungswinkel ELAX Ex F20
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Raster 20 x 25mm\
2 x Zentrierring Ø6\
4 x Innensechsrund, M3 x 12\
4 x Distanzhülse mit Zentrierung Rxhq 50-12\
4 x Inbus Standard, M4 x 55
{% endcolumn %}
{% endcolumns %}
***
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
### Zentrierringe D6
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Aussen Ø6 H7 / M4 / H2.8
{% endcolumn %}
{% endcolumns %}
---
