# Abmessungen

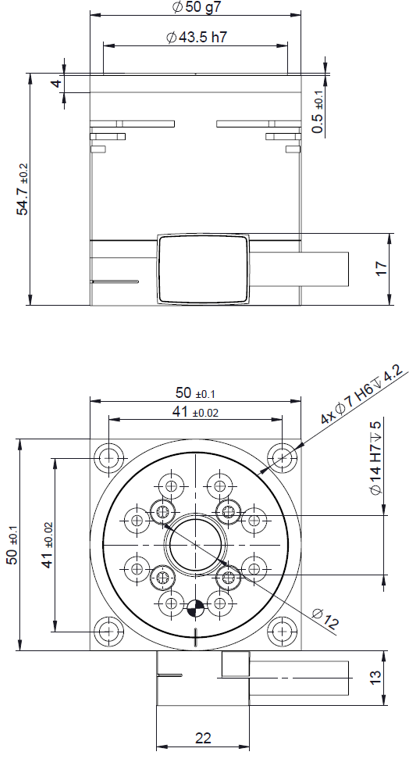

## Einbaumasse

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq50_Einbaumasse.png" alt=""><figcaption></figcaption></figure>

***

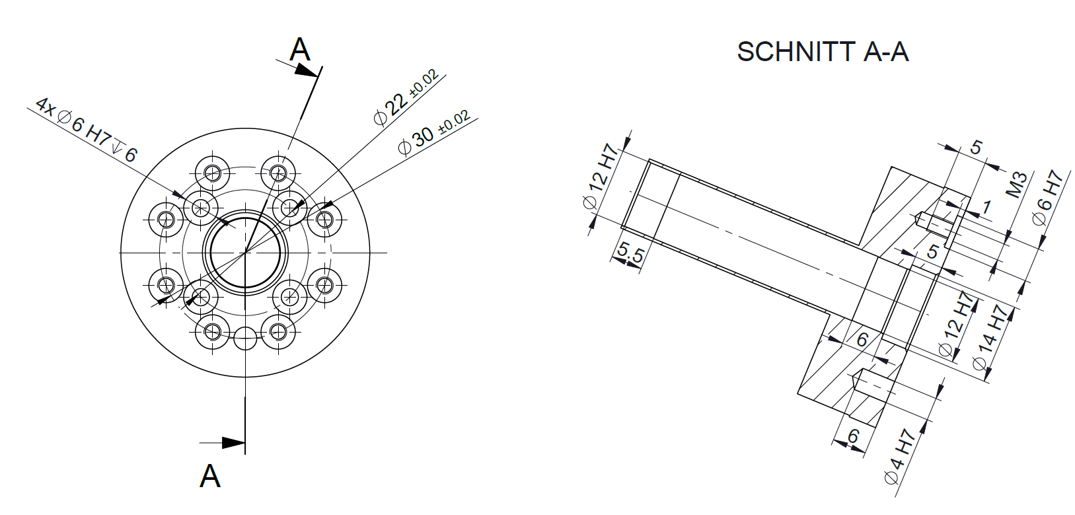

## Abtriebsflansch

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq50_Frontflansch.png" alt=""><figcaption></figcaption></figure>

***

## Nullposition & Referenzfahrt

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

#### Nullposition & mechanischer Endanschlag

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column width="50%" %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq50_Null.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column width="50%" %}

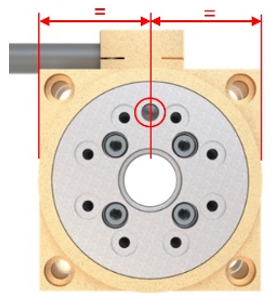

Für die Ausrichtung des Rotorflansches ist eine Einzelbohrung Ø4H7 vorgesehen. Mit zentrischer Ausrichtung dieser Bohrung auf der Seite des Steckergehäuses findet man den Absolut Nullpunkt.
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

#### Referenzfahrt

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}
Mit dem Single-Turn-Absolutencoder ist die Position unmittelbar nach dem Einschalten verfügbar. Dadurch ist keine Referenzfahrt notwendig.
{% endcolumn %}
{% endcolumns %}


---
