# Modularität und Adapter

## Montagevarianten

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

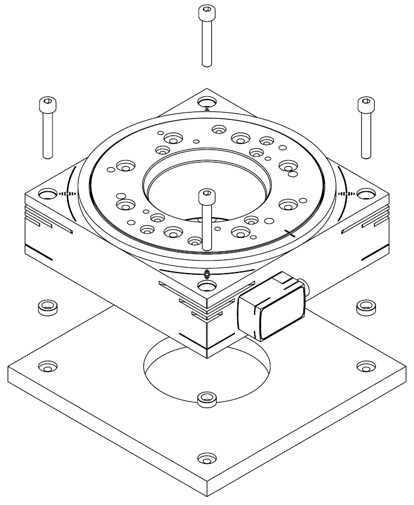

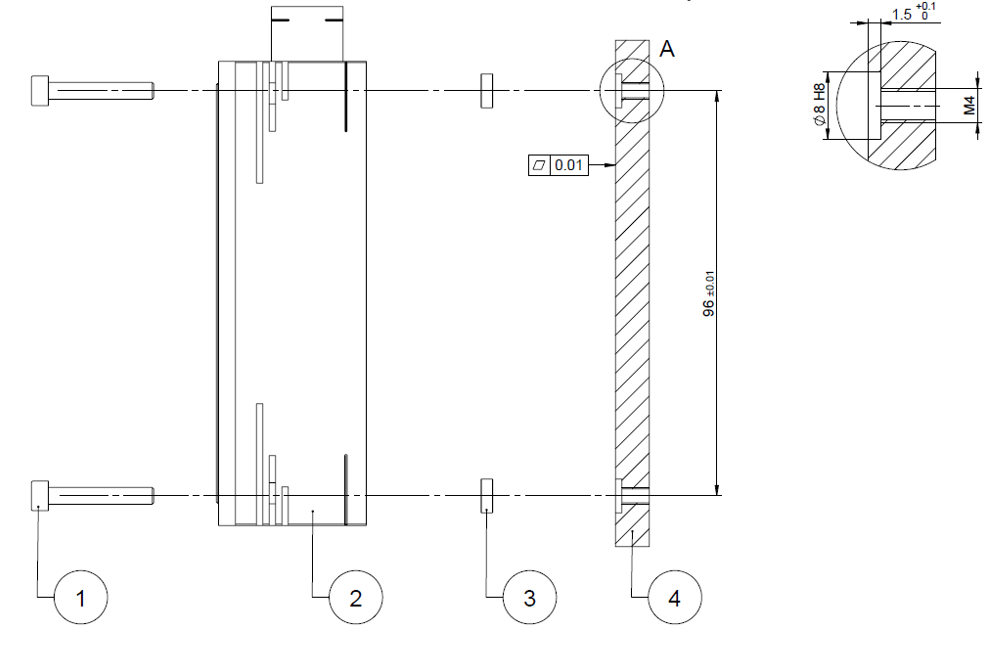

### Montage Rückseite mit Zentrierringen

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq110T1_5_MontageRueckseite01.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq110T1_5_MontageRueckseite_02.png" alt=""><figcaption></figcaption></figure>

<table><thead><tr><th width="79.4444580078125">Pos.</th><th width="95.22216796875">Menge</th><th>Benennung</th></tr></thead><tbody><tr><td>1</td><td>4</td><td>Befestigungsschrauben M4 (max. Anzugsmoment 2.9 Nm)</td></tr><tr><td>2</td><td>1</td><td>ROTAX® Rxhq 110-50T1.5</td></tr><tr><td>3</td><td>4</td><td>Zentrierringe (Ø8 g6 x 2.8)</td></tr><tr><td>4</td><td>1</td><td>Montageplatte Kunde</td></tr></tbody></table>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

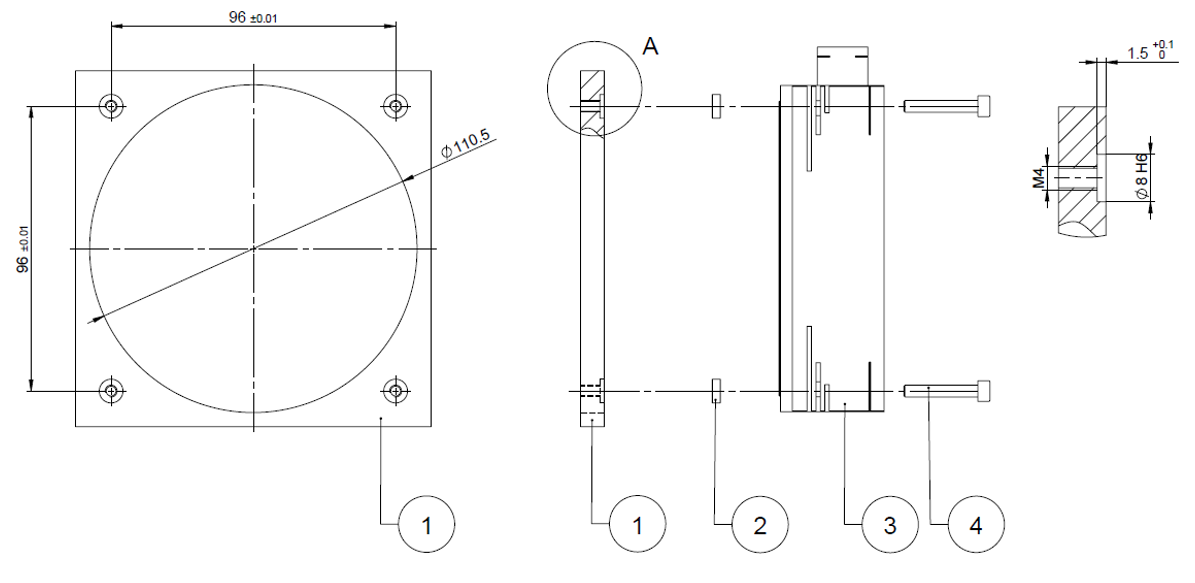

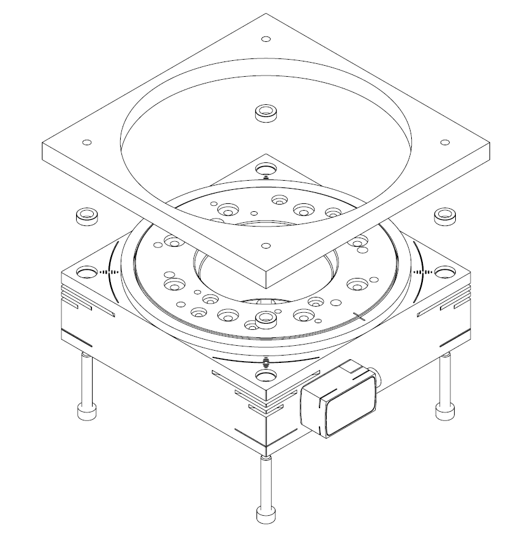

### Montage Flanschseite mit Zentrierring

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq110T1_5_MontageFlanschseite01.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq110T1_5_MontageFlanschseite02.png" alt=""><figcaption></figcaption></figure>

<table><thead><tr><th width="83">Pos.</th><th width="95.77783203125">Menge</th><th>Benennung</th></tr></thead><tbody><tr><td>1</td><td>1</td><td>Montageplatte Kunde - Flanschseite</td></tr><tr><td>2</td><td>4</td><td>Zentrierringe (Ø8 g6 x 2.8)</td></tr><tr><td>3</td><td>1</td><td>ROTAX® Rxhq 110-50T1.5</td></tr><tr><td>4</td><td>4</td><td>Befestigungsschrauben M4 (max. Anzugsmoment 2.9 Nm)</td></tr></tbody></table>

***

## Lochbilder nach Verwendung

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Ex F20 Monoblock

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq110T1_5_Lochbilder_F20.png" alt=""><figcaption></figcaption></figure>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Lxc F08/F10 Monoblock

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq110T1_5_Lochbilder_F10.png" alt=""><figcaption></figcaption></figure>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Lxs F60S Grunplatte

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/ROTAX_Rxhq110T1_5_Lochbilder_F60S.png" alt=""><figcaption></figcaption></figure>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Zentrierringe D8

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/Zentrieringe_d8.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Aussen Ø8 H7 / M6 / H2.8
{% endcolumn %}
{% endcolumns %}


---
