# Modularität und Adapter

## Montagevarianten und Lochbilder

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

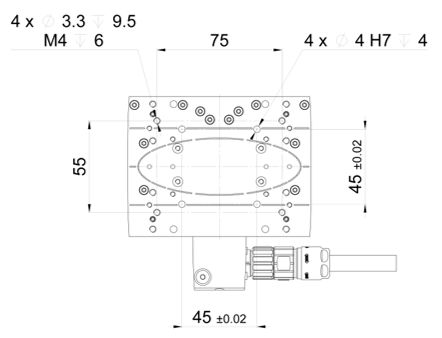

### Ausleger mit Lxu F60/S (Rücken an Rücken)

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60S_AuslegerLxu.png" alt=""><figcaption></figcaption></figure>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

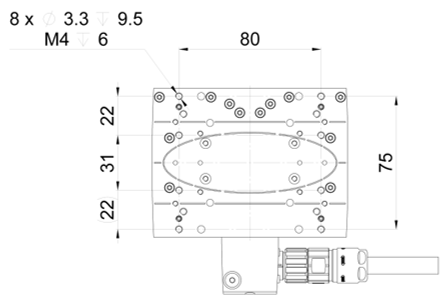

### Portal mit Lxu F60/S Stirnflansch

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60S_PortalLxu.png" alt=""><figcaption></figcaption></figure>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

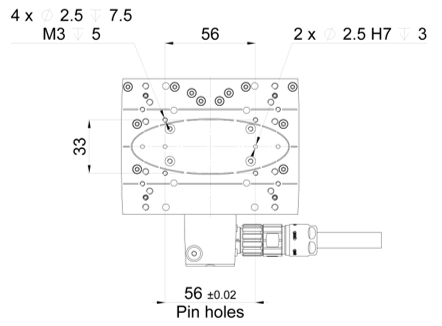

### Kreuztisch mit Lxc F08 / F10 Monoblock

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60S_KreutischLxcF08F10.png" alt=""><figcaption></figcaption></figure>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

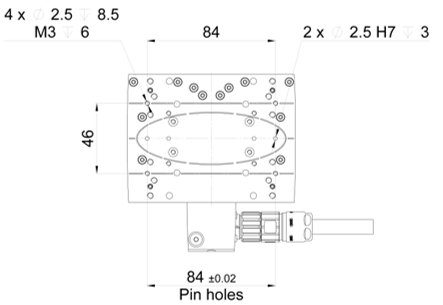

### Kreuztisch mit Lxc F40 Monoblock

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60S_KreuzotsichLxcF40.png" alt=""><figcaption></figcaption></figure>

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

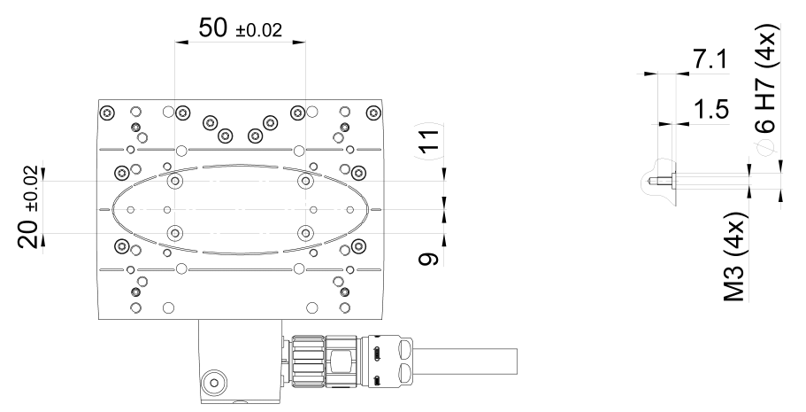

### Ausleger mit Ex F20

{% endcolumn %}
{% endcolumns %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60S_AuslegerEx.png" alt=""><figcaption></figcaption></figure>

***

## Adapter und Montagezubehör

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Stirnflanschverbindungen

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

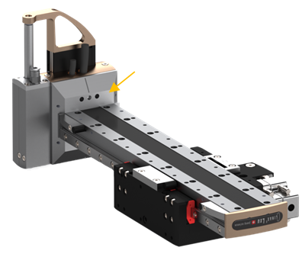

An den LINAX® Lxu kann stirnseitig eine weitere Lxu - oder Lxc Linearmotor-Achse oder auch ein ELAX® Linearmotor-Schlitten montiert werden. Dazu wird die Stirnplatte entfernt und der Stirnflansch Lxu mit vier Schrauben und zwei Zentrierstiften befestigt. Diese Stirnflansche kann im 90° Raster drehbar angeschraubt und zentriert werden (ausser bei ELAX®).
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_LxcF08.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

#### Lxu-Lxc F08/F10

<div align="left"><figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_ZurLxcF08F10.png" alt=""><figcaption></figcaption></figure></div>
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_Lxu.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

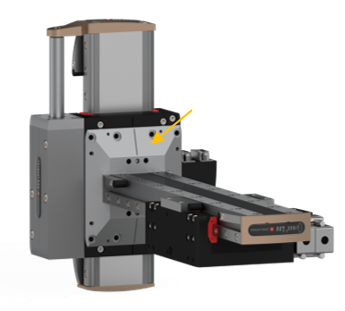

#### Lxu-Lxu oder Lxu-Lxc F40

<div align="left"><figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_ZurLxcF40.png" alt=""><figcaption></figcaption></figure></div>
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_ExHochkant.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

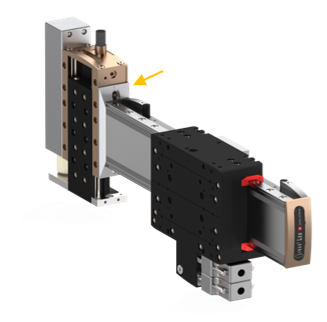

#### Lxu-Elax hochkant

<div align="left"><figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_ZurExHochkant.png" alt=""><figcaption></figcaption></figure></div>
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_ExFlach.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

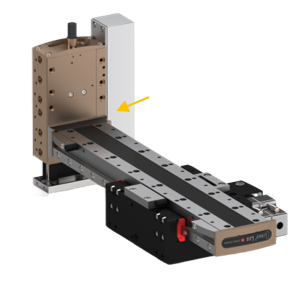

#### Lxu-Elax flach

<div align="left"><figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_Stirnflansch_ZurExFlach.png" alt=""><figcaption></figcaption></figure></div>
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Lxu_AuslegerArmierung.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

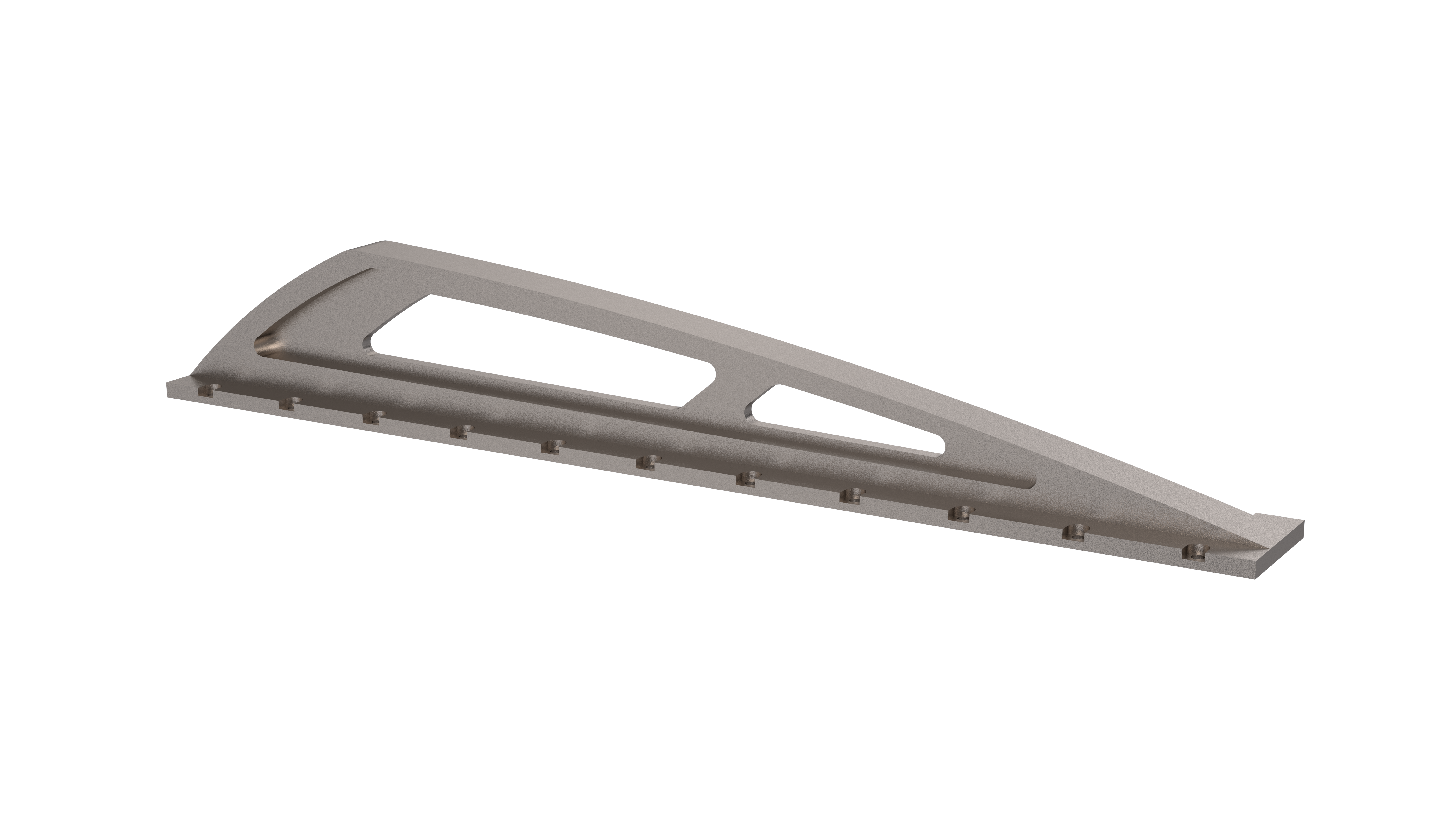

### Auslegerarmierung LINAX® Lxu F60S

Bei langen Auslegerachsen wird mit der Auslegerarmierung eine höhere\
Steifigkeit gegen Durchbiegen erreicht.

Optional zur Lxu 240F60S und Lxu 320F60
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60_AdapterplatteZurF60.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

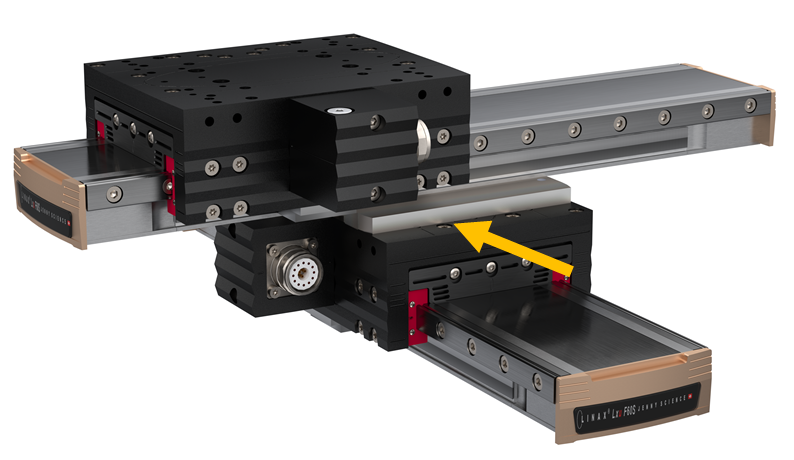

### Adapterplatte LINAX® Lxu F60S

Adapterplatte LINAX® zum Verbinden eines **Lxu-Schlitten** der einen Achse mit der **Lxu Grundplatte** der andern Achse inkl. Schrauben und Zentrierstifte.
{% endcolumn %}
{% endcolumns %}


---
