# Erforderliche Messmittel

## Erforderliche Messmittel <a href="#erforderliche-messmittel" id="erforderliche-messmittel"></a>

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/Gantry_.Messmittel.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

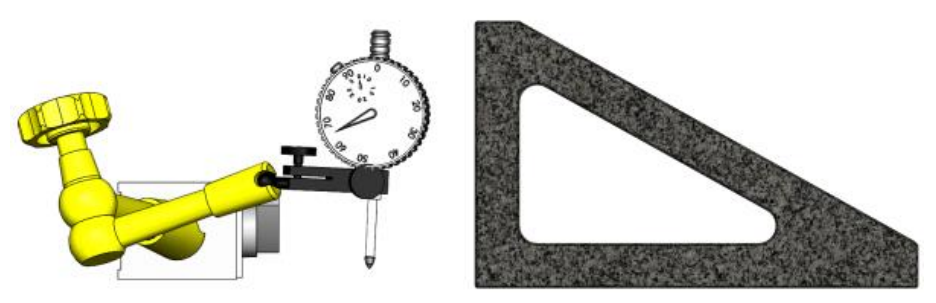

* **Massiver, präziser Messwinkel,** idealerweise aus Granit mit Seitenlängen von mindestens 200 x 200 mm.
* **Messuhrständer und Messuhr**, bevorzugte Auflösung: 0.001 mm.

Hinweis: Die verfügbaren Befestigungspunkte an der X-Achse für den Messuhrständer sind M3- und M4-Gewinde. Für Magnetstative wird eine ferromagnetische Adapterplatte benötigt.

Bitte beachten Sie die Installationshinweise LINAX® Lxs, insbesondere die Ebenheit der Montageplatte von mindestens 0.01 mm.
{% endcolumn %}
{% endcolumns %}


---
