# Abmessungen

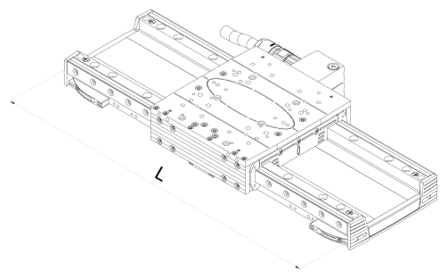

## Aussenmasse

{% columns %}
{% column width="50%" %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF60S_Aussenmasse01.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF60S_Aussenmasse02.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column width="50%" %}

| LINAX® Lxs F60S  | L \[mm] |
| ---------------- | ------: |
| Lxs 160F60S      |     290 |
| Lxs 200F60S      |     330 |
| Lxs 320F60S      |     450 |
| Lxs 400F60S      |     530 |
| Lxs 520F60S      |     650 |
| Lxs 600F60S      |     730 |
| Lxs 800F60S      |     930 |
| Lxs 1000F60S     |    1130 |
| Lxs 1200F60S     |    1330 |
| Lxs 1600F60S     |    1730 |
| {% endcolumn %}  |         |
| {% endcolumns %} |         |

***

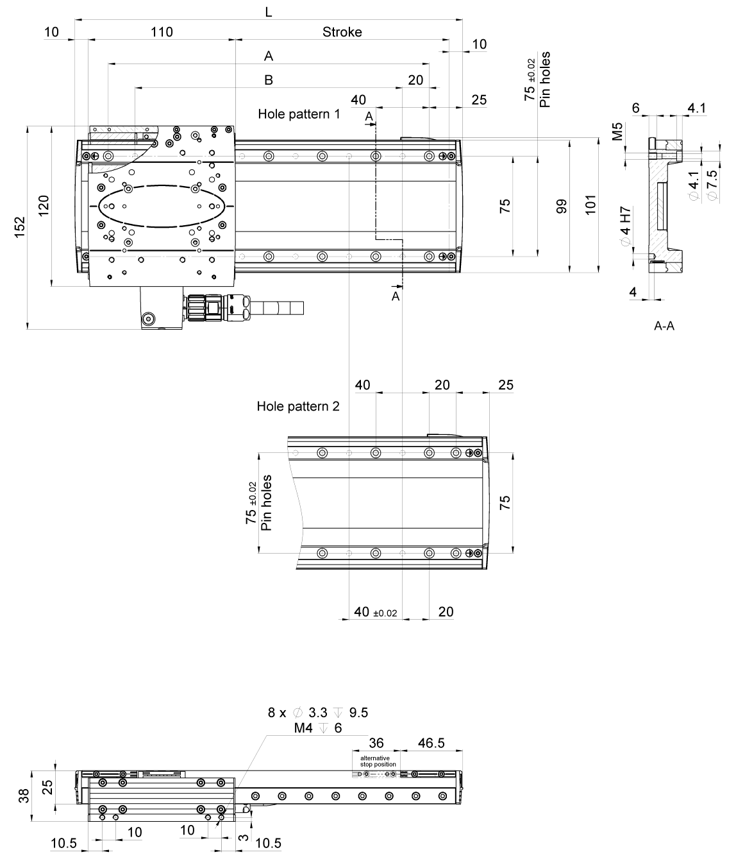

## Einbaumasse

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF60S_Einbaumasse.png" alt=""><figcaption></figcaption></figure>

| LINAX® Lxs F60S | Hub \[mm] | L \[mm] | A \[mm] | B \[mm] | Bohrmuster |
| --------------- | --------: | ------: | ------: | ------: | ---------: |
| Lxs 160F60S     |       160 |     290 |     240 |     200 |          1 |
| Lxs 200F60S     |       200 |     330 |     240 |     200 |          2 |
| Lxs 320F60S     |       320 |     450 |     400 |     360 |          1 |
| Lxs 400F60S     |       400 |     530 |     480 |     440 |          1 |
| Lxs 520F60S     |       520 |     650 |     560 |     520 |          2 |
| Lxs 600F60S     |       600 |     730 |     640 |     600 |          2 |
| Lxs 800F60S     |       800 |     930 |     880 |     840 |          1 |
| Lxs 1000F60S    |      1000 |    1130 |    1040 |    1000 |          2 |
| Lxs 1200F60S    |      1200 |    1330 |    1280 |    1240 |          1 |
| Lxs 1600F60S    |      1600 |    1730 |    1680 |    1640 |          1 |

***

## Nullposition & Referenzfahrt

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

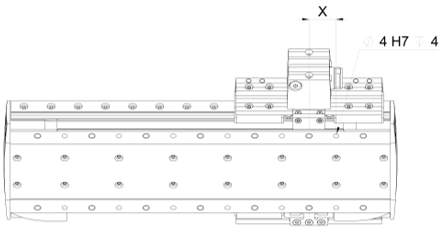

#### Nullposition & mechanischer Endanschlag

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF60S_NullPos.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Der mechanische Anschlag befindet sich etwa 1,5 mm von der Nullposition entfernt. Die Nullposition ist der Punkt, an dem der Mittelpunkt des Schlittens liegt. Dieser ist mit dem Maß X auf die erste Stiftbohrung ausgerichtet.

| LINAX® Lxs F60S  | L \[mm] | X \[mm] |
| ---------------- | ------: | ------- |
| Lxs 160F60S      |     290 | 20      |
| Lxs 200F60S      |     330 | 0       |
| Lxs 320F60S      |     450 | 20      |
| Lxs 400F60S      |     530 | 20      |
| Lxs 520F60S      |     650 | 0       |
| Lxs 600F60S      |     730 | 0       |
| Lxs 800F60S      |     930 | 20      |
| Lxs 1000F60S     |    1130 | 0       |
| Lxs 1200F60S     |    1330 | 20      |
| Lxs 1600F60S     |    1730 | 20      |
| {% endcolumn %}  |         |         |
| {% endcolumns %} |         |         |

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

#### Referenzfahrt

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}
Eine Referenzfahrt ist nicht erforderlich. Mit dem Absolut-Messsytem ist die Position unmittelbar nach dem Einschalten verfügbar.
{% endcolumn %}
{% endcolumns %}

***

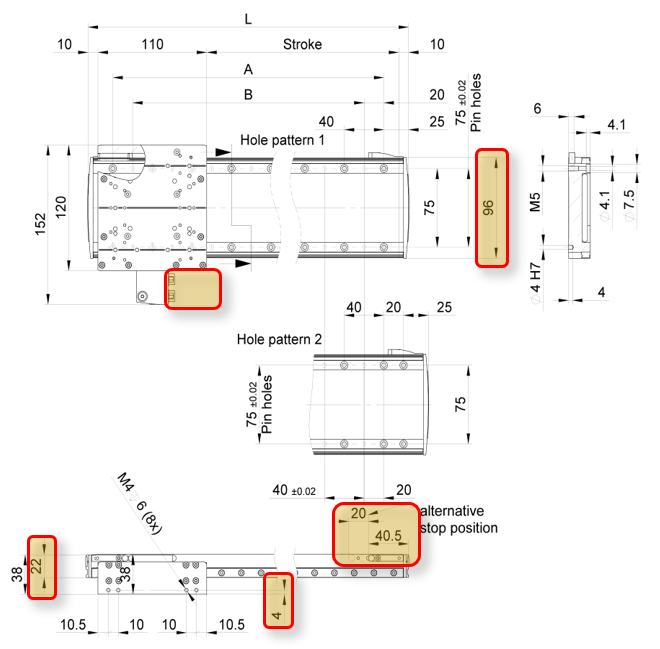

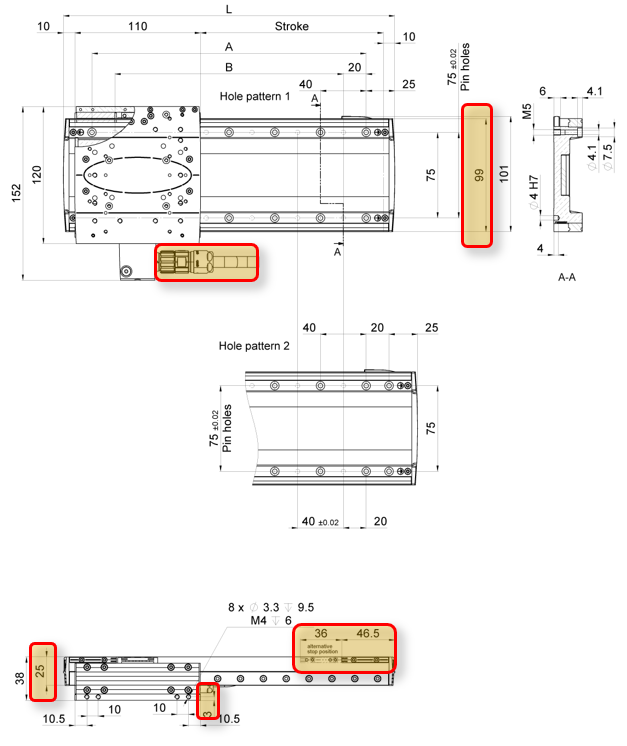

## Montageunterschiede zur F60

Die nachfolgenden Informationen zeigen die mechanisch relevanten Unterschiede für den Einbau zwischen der aktuellen Linearachse F60S und ihrem Vorgängermodell F60. Diese Übersicht hilft Ihnen, wesentliche Änderungen schnell zu erkennen, sodass beim Umstieg nicht jede einzelne Maßangabe beider Datenblätter verglichen werden muss.

{% columns %}
{% column %}

<p align="center"><strong>Lxs F60S</strong></p>
{% endcolumn %}

{% column %}

<p align="center"><strong>Lxs F60</strong></p>
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF60S_MontageuntershiedeZurF60_01.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF60S_MontageuntershiedeZurF60_02.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}
{% endcolumns %}

Mechanische Anschläge sind nicht kompatibel und können bei kundenseitiger Eigenkonstruktion nicht übernommen werden.


---
