# Abmessungen

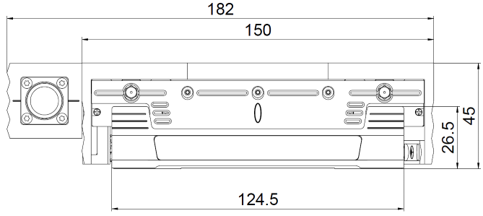

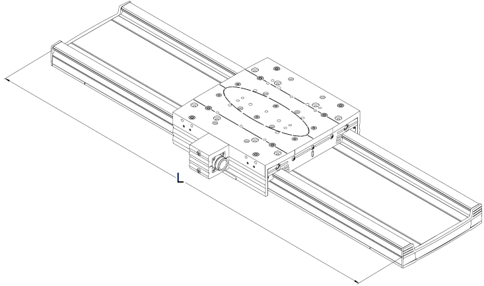

## Aussenmasse

{% columns %}
{% column width="50%" %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF120_Aussenmasse_01.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF120_Aussenmasse_02.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column width="50%" %}

| LINAX® Lxs F60S  | L \[mm] |
| ---------------- | ------: |
| Lxs 80F120       |     243 |
| Lxs 200F60S      |     363 |
| Lxs 400F60S      |     563 |
| Lxs 520F60S      |     683 |
| Lxs 600F60S      |     763 |
| Lxs 800F60S      |     963 |
| Lxs 1000F60S     |    1163 |
| Lxs 1200F60S     |    1363 |
| Lxs 1600F60S     |    1763 |
| Lxs 2000F60S     |    2163 |
| {% endcolumn %}  |         |
| {% endcolumns %} |         |

***

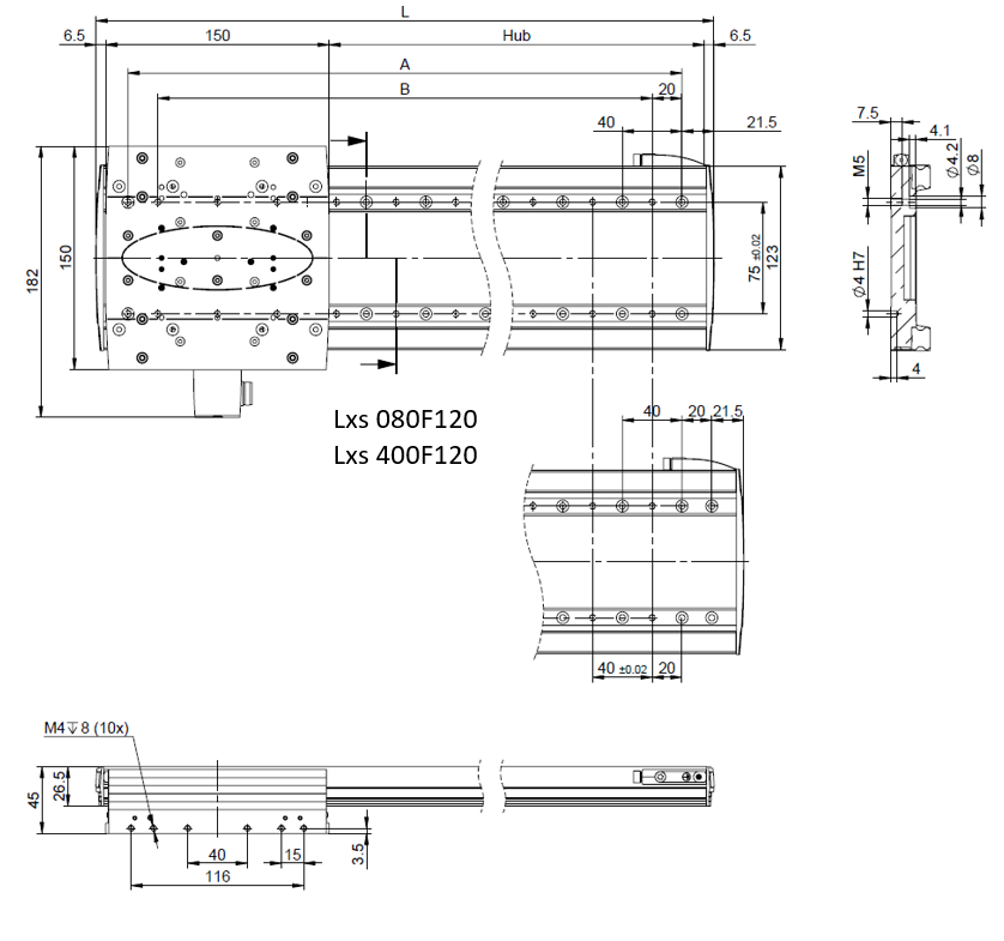

## Einbaumasse

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF120_Eibaumasse.png" alt=""><figcaption></figcaption></figure>

| Typ          | Hub \[mm] | L\[mm] | A\[mm] | B\[mm] |
| ------------ | --------: | -----: | -----: | -----: |
| Lxs 80F120   |        80 |    243 |    200 |    120 |
| Lxs 200F120  |       200 |    363 |    320 |    280 |
| Lxs 400F120  |       400 |    563 |    520 |    440 |
| Lxs 520F120  |       520 |    683 |    640 |    600 |
| Lxs 600F120  |       600 |    763 |    720 |    680 |
| Lxs 800F120  |       800 |    963 |    920 |    880 |
| Lxs 1000F120 |      1000 |   1163 |   1120 |   1080 |
| Lxs 1200F120 |      1200 |   1363 |   1320 |   1280 |
| Lxs 1600F120 |      1600 |   1763 |   1720 |   1680 |
| Lxs 2000F120 |      2000 |   2163 |   2120 |   2080 |

***

## Nullposition & Referenzfahrt

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

#### Nullposition & mechanischer Endanschlag

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column width="50%" %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxsF120_NullPos.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column width="50%" %}

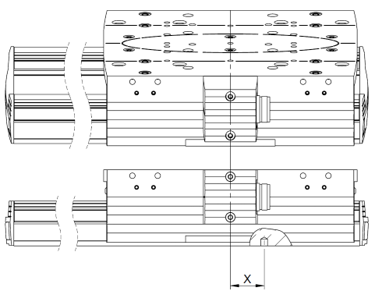

Der mechanische Anschlag befindet sich etwa 1,5 mm von der Nullposition entfernt. Die Nullposition ist der Punkt, an dem der Mittelpunkt des Schlittens liegt. Dieser ist mit dem Maß X auf die erste Stiftbohrung ausgerichtet.

<table><thead><tr><th width="266.7777099609375">LINAX® Lxs F60S</th><th align="right">X [mm]</th></tr></thead><tbody><tr><td>Lxs 160F60S</td><td align="right">20</td></tr><tr><td>Lxs 200F60S</td><td align="right">0</td></tr><tr><td>Lxs 320F60S</td><td align="right">20</td></tr><tr><td>Lxs 400F60S</td><td align="right">20</td></tr><tr><td>Lxs 520F60S</td><td align="right">0</td></tr><tr><td>Lxs 600F60S</td><td align="right">0</td></tr><tr><td>Lxs 800F60S</td><td align="right">20</td></tr><tr><td>Lxs 1000F60S</td><td align="right">0</td></tr><tr><td>Lxs 1200F60S</td><td align="right">20</td></tr><tr><td>Lxs 1600F60S</td><td align="right">20</td></tr></tbody></table>
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

#### Referenzfahrt

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}
Eine Referenzfahrt ist nicht erforderlich. Mit dem Absolut-Messsytem ist die Position unmittelbar nach dem Einschalten verfügbar.
{% endcolumn %}
{% endcolumns %}


---
