### Lxc F40
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column width="50%" %}
{% endcolumn %}
{% column width="50%" %}
| LINAX® Lxc F40 | L \[mm] |
| ---------------- | ------: |
| Lxc 80F40 | 169 |
| Lxc 176F40 | 265 |
| Lxc 272F40 | 361 |
| {% endcolumn %} | |
| {% endcolumns %} | |
***
## Einbaumasse
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
### Lxc F08/F10
{% endcolumn %}
{% endcolumns %}
{% tabs %}

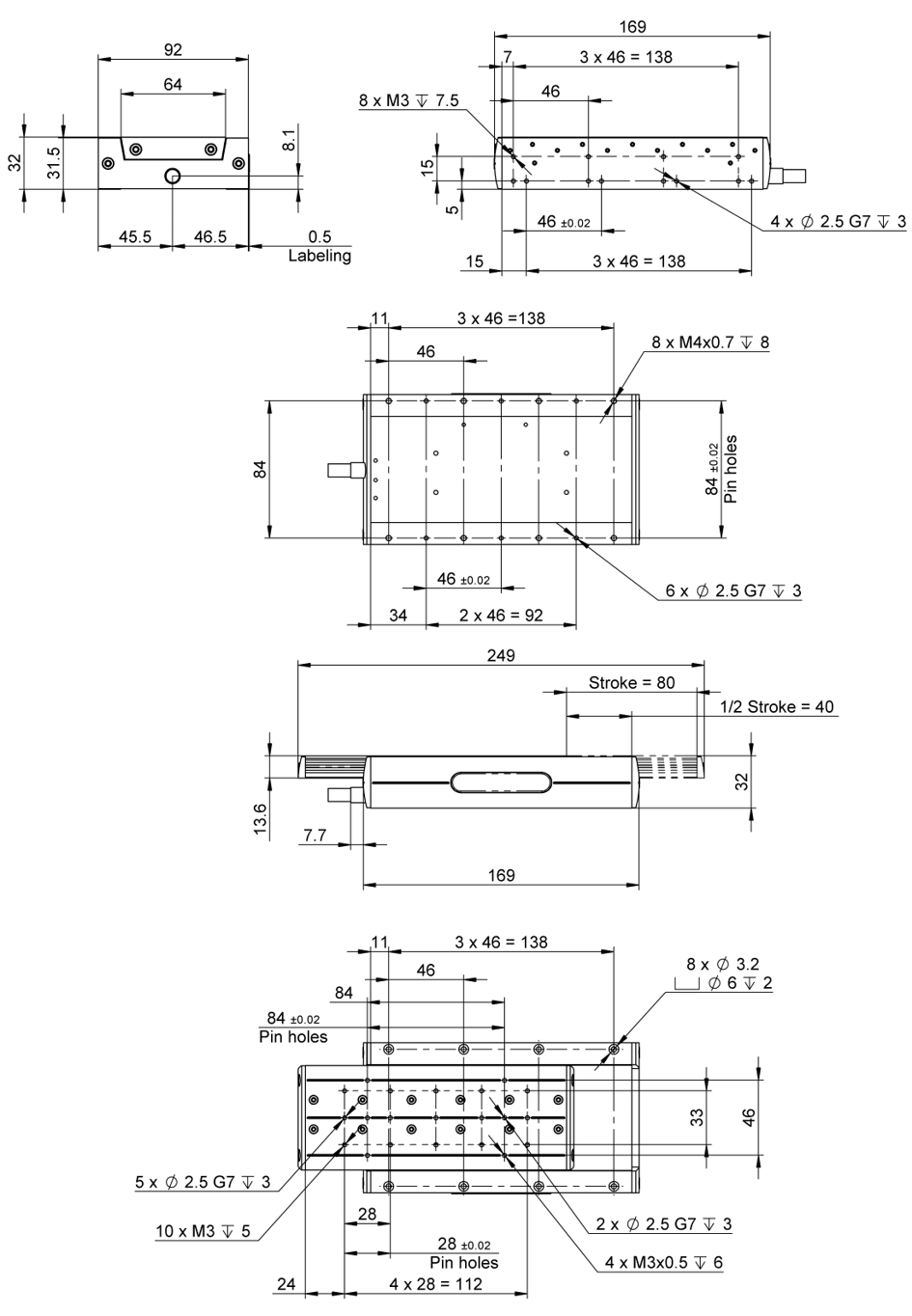

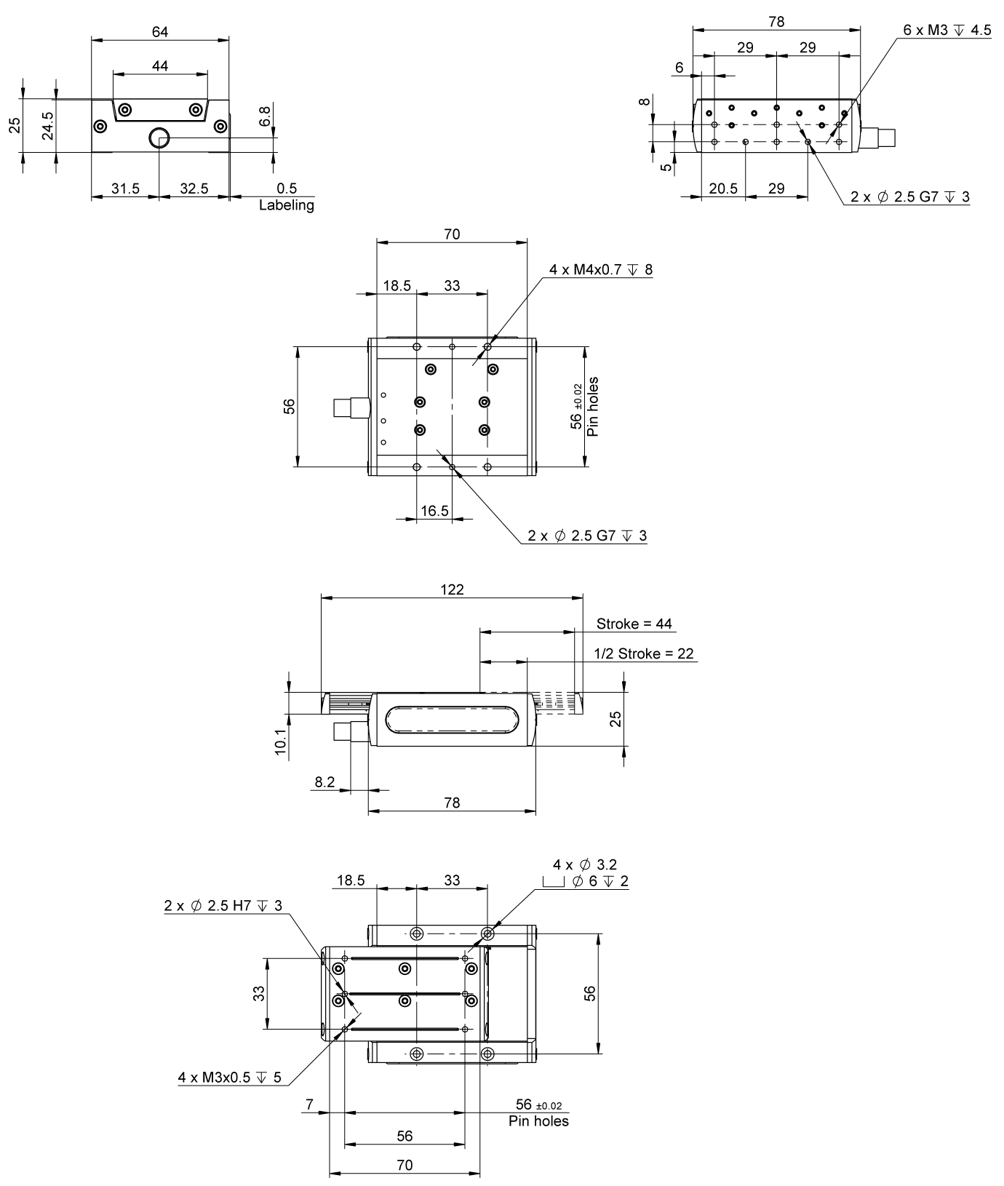

{% tab title="Lxc 44F08" %}
{% endtab %}

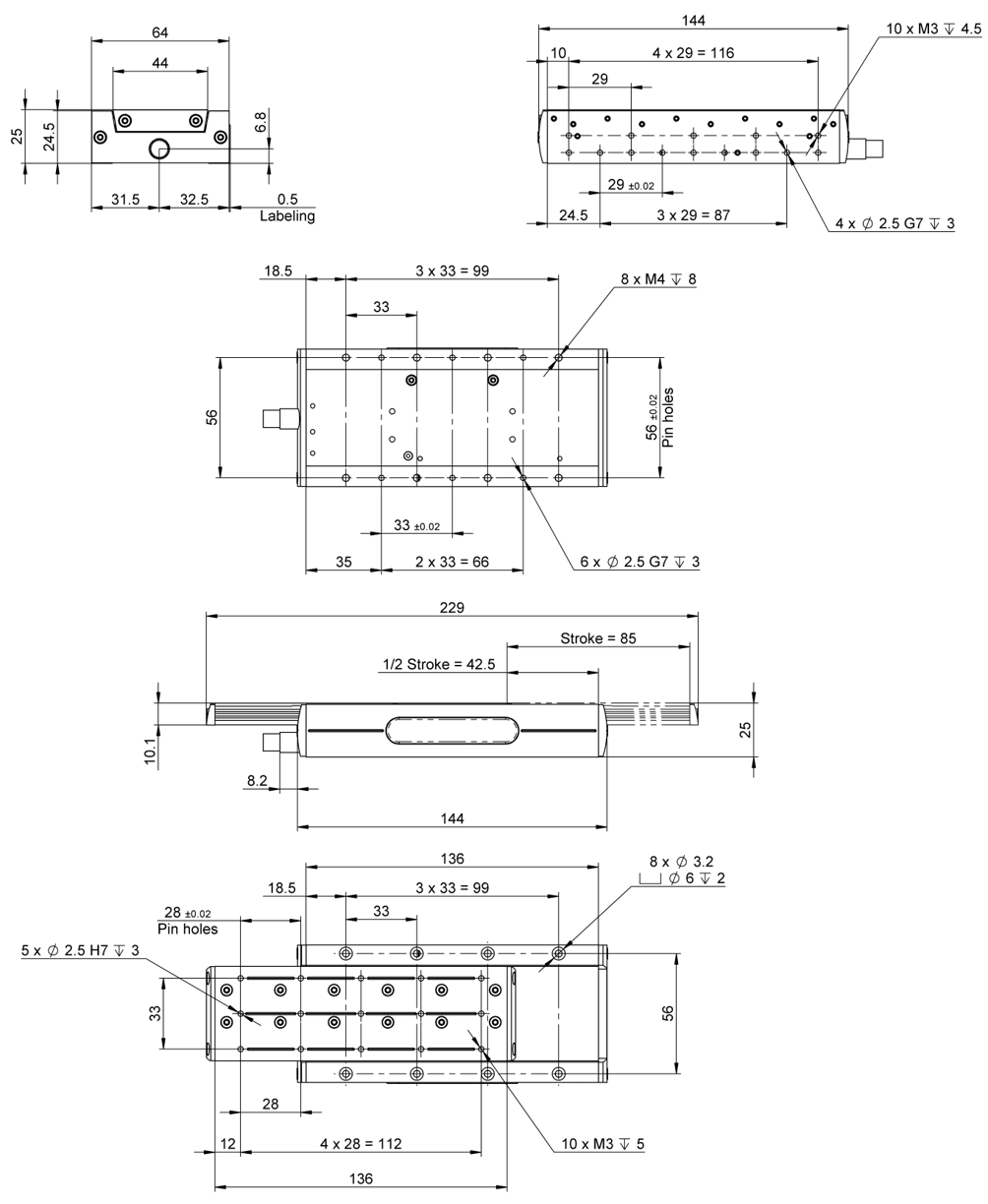

{% tab title="Lxc 85F10" %}
{% endtab %}

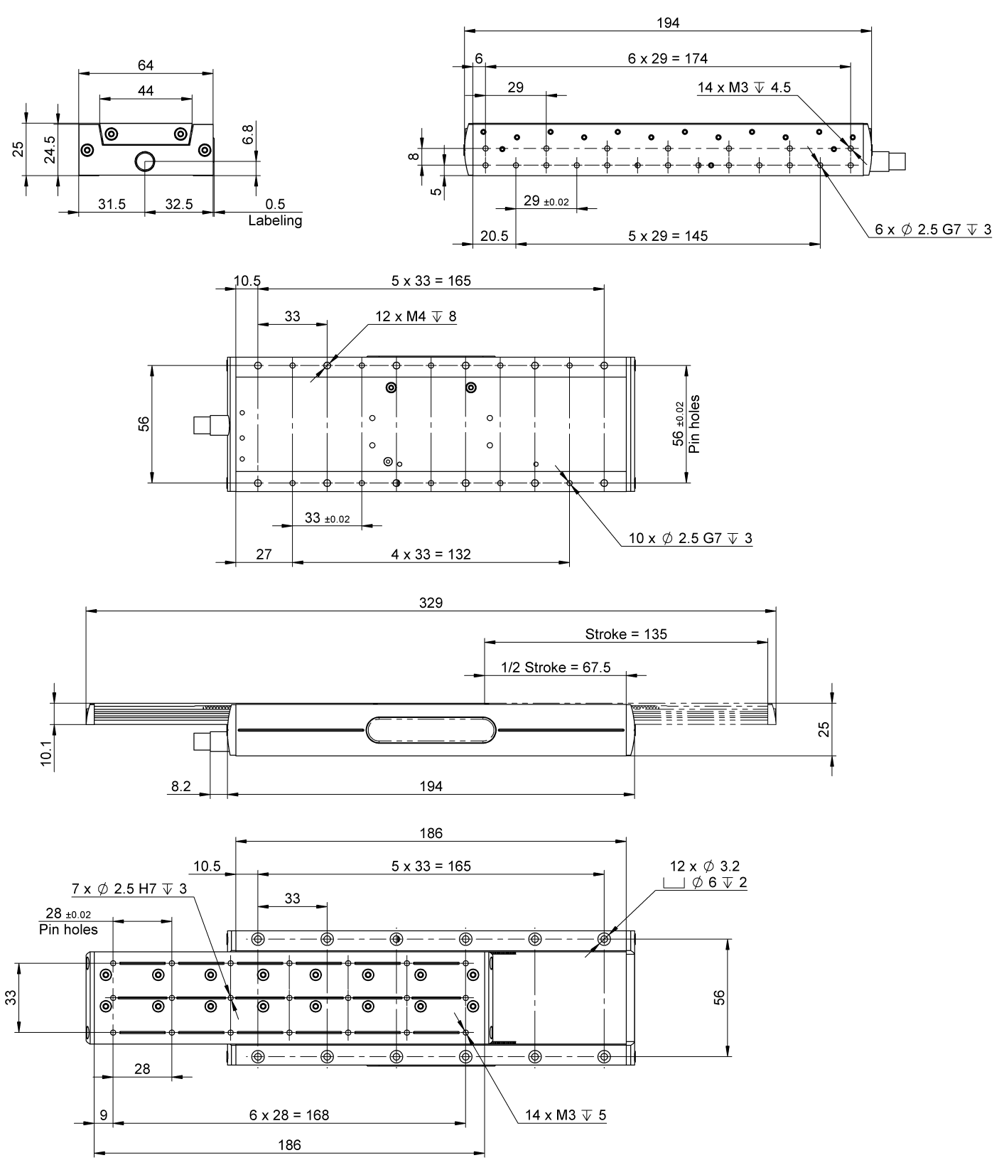

{% tab title="Lxc 135F10" %}
{% endtab %}

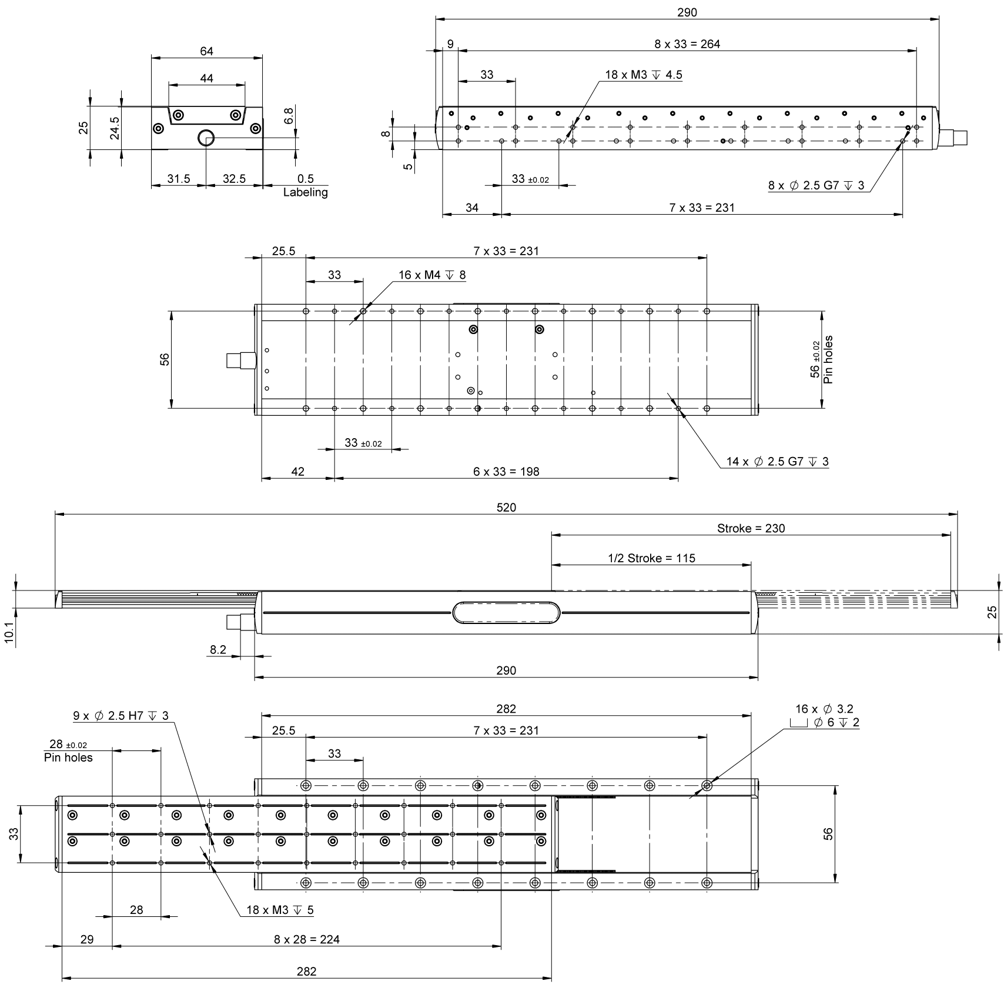

{% tab title="Lxc 230F10" %}
{% endtab %}
{% endtabs %}
***
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
### Lxc F40
{% endcolumn %}
{% endcolumns %}
{% tabs %}
{% tab title="Lxc 80F40" %}
{% endtab %}

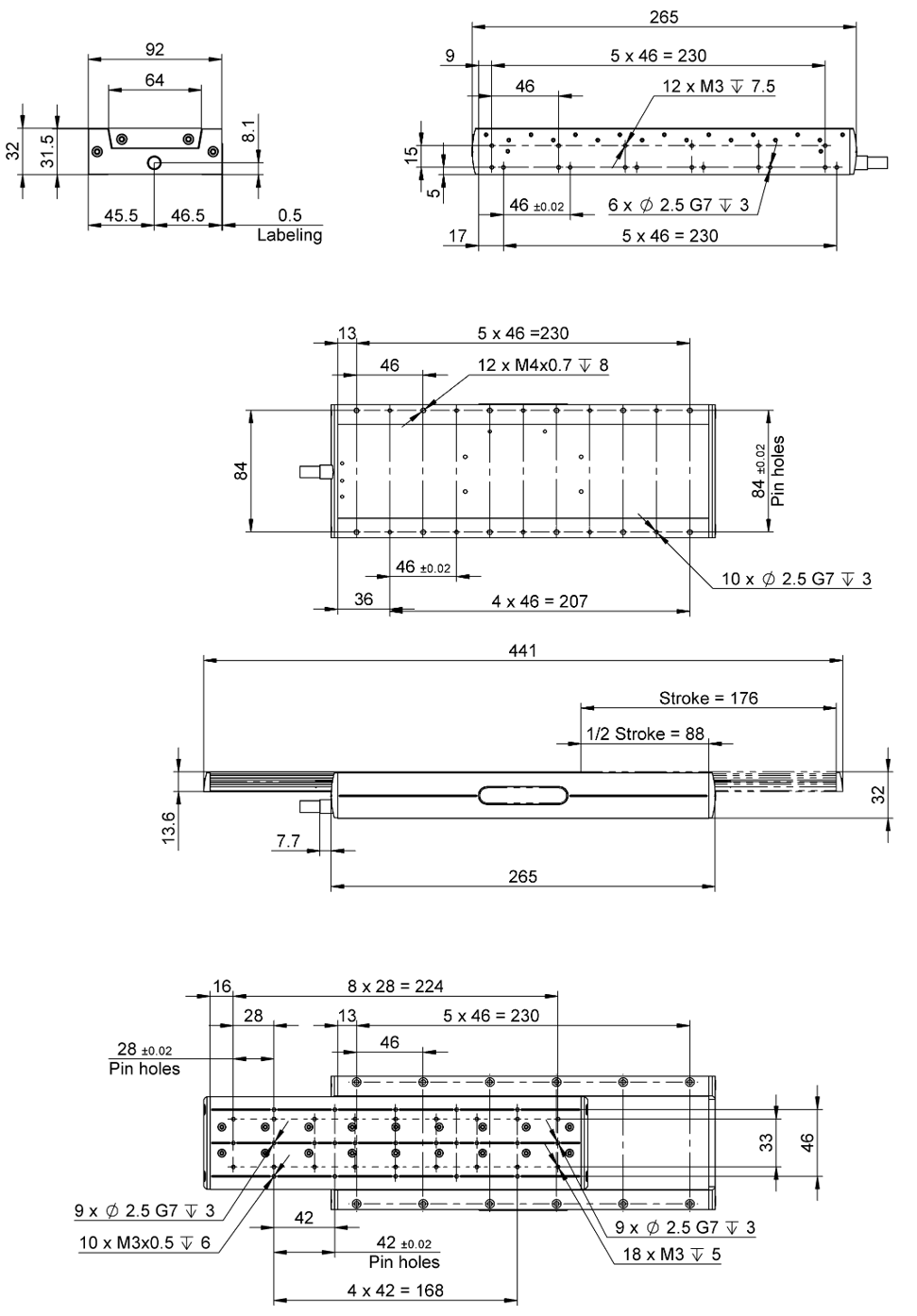

{% tab title="Lxc 176F40" %}
{% endtab %}

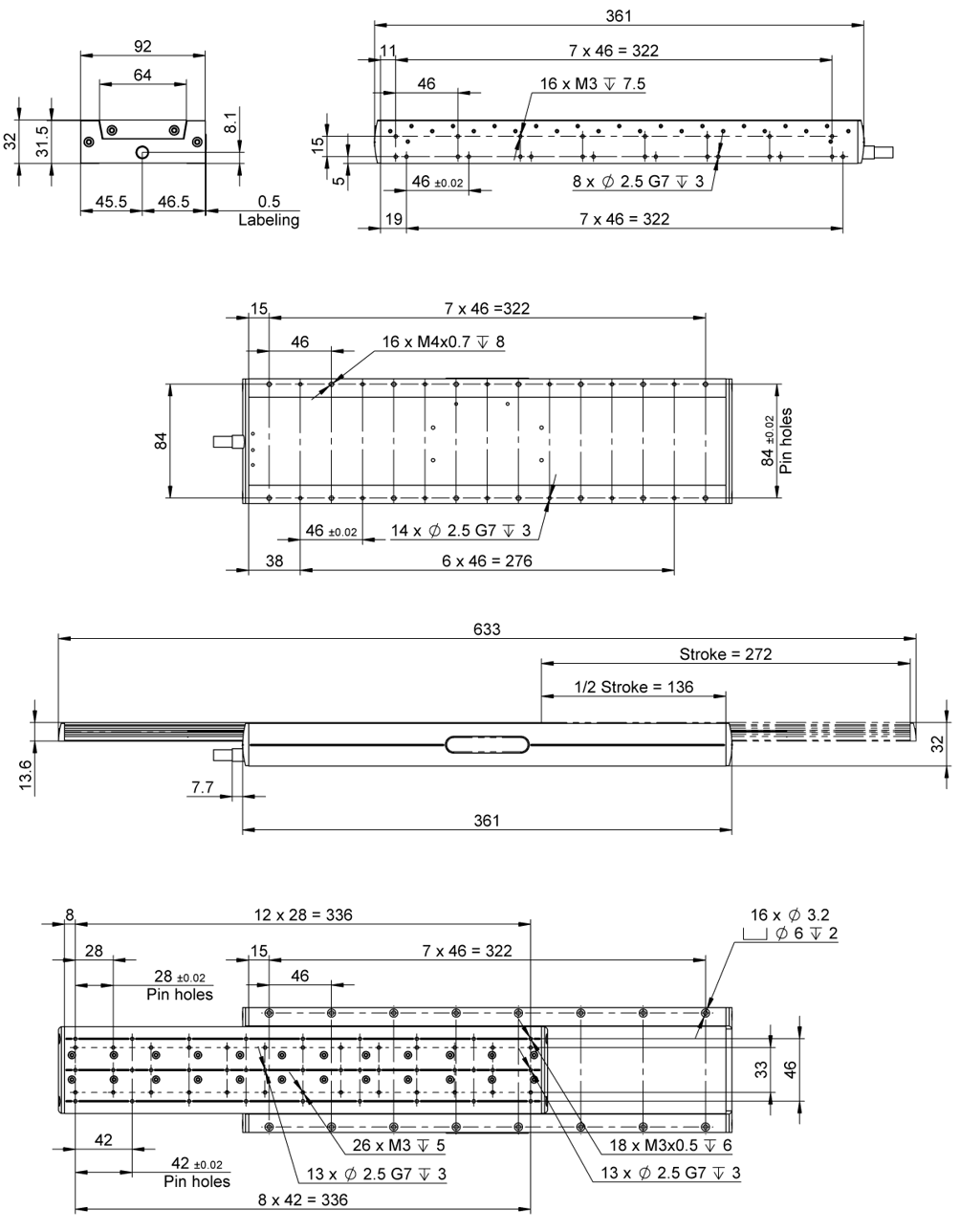

{% tab title="Lxc 272F40" %}
{% endtab %}
{% endtabs %}
***
## Nullposition & Referenzfahrt
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
#### Nullposition & mechanischer Endanschlag
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}

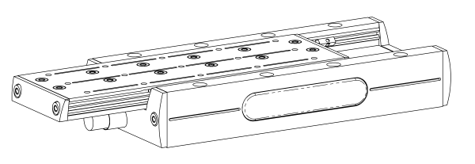

Lxc Nullpunkt absolut nach REFERENCE:\
Schlitten ausgefahren in Richtung Anschlusskabel
Die Nullposition befindet sich 1.5mm entfernt vom mechanischen Endanschlagdabei ist der Schlitten ausgefahren, in Richtung Kabelanschluss.
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
#### Referenzfahrt
{% endcolumn %}
{% endcolumns %}
{% columns %}
{% column %}
{% endcolumn %}
{% column %}
Automatische Berechnung der Absolutposition via abstandscodierte Referenzmarken. Überfahren von 2 Referenzmarken, max 10mm, Fahrrichtung wählbar. Die Referenzfahrt muss nur einmal nach dem Einschalten der Logikspeisung (24V) aufgerufen werden. Die Absolutposition bleibt solange erhalten bis die Logikspeisung abgeschaltet wird. (XENAX® Servocontroller)
