# Abmessungen

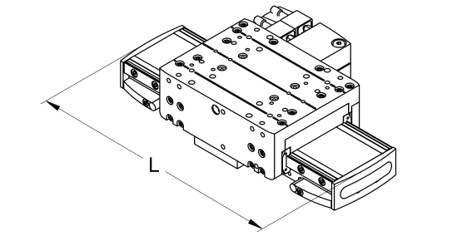

## Aussenmasse

{% columns %}
{% column width="50%" %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60_Aussemasse01.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_LxuF60_Aussemasse02.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column width="50%" %}

| LINAX® Lxu F60   | L \[mm] |
| ---------------- | ------- |
| Lxu 40F60        | 170     |
| Lxu 80F60S       | 210     |
| Lxu 160F60S      | 290     |
| Lxu 240F60S      | 370     |
| Lxu 320F60S      | 450     |
| {% endcolumn %}  |         |
| {% endcolumns %} |         |

***

## Einbaumasse

| LINAX® Lxu F60 | Hub \[mm] | L \[mm] | A \[mm] | B \[mm] | Bohrmuster |
| -------------- | --------- | ------- | ------- | ------- | ---------- |
| Lxu 40F60      | 40        | 170     | 80      | 40      | 2          |
| Lxu 80F60      | 80        | 210     | 160     | 120     | 1          |
| Lxu 160F60S    | 160       | 290     | 240     | 200     | 1          |
| Lxu 240F60S    | 240       | 370     | 320     | 280     | 1          |
| Lxu 320F60S    | 320       | 450     | 400     | 360     | 1          |

***

## Nullposition & Referenzfahrt

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

#### Nullposition & mechanischer Endanschlag

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}
Lxu Nullpunkt absolut ach REFERENCE:

Schlitten nach rechts bei Sicht auf Steckergehäuse.t.
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

#### Referenzfahrt

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/LINAX_Abstandkodiert.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Automatische Berechnung der Absolutposition durch überfahren von 2 abstandcodierte Referenzmarken.

Notwendiger, max. Fahrweg für Referenz:

* max 10mm beim optischen
* max 40mm beim magnetischen 160-600
* max 60mm beim magnetischen 800-1600

Die Fahrrichtung ist wählbar

Die Referenzfahrt muss nur einmal nach dem Einschalten der Logikspeisung (24V) aufgerufen werden. Die Absolutposition bleibt solange erhalten bis die Logikspeisung abgeschaltet wird. (XENAX® Servocontroller)
{% endcolumn %}
{% endcolumns %}


---
