# Modularität und Adapter

## Adapter und Montagezubehör

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

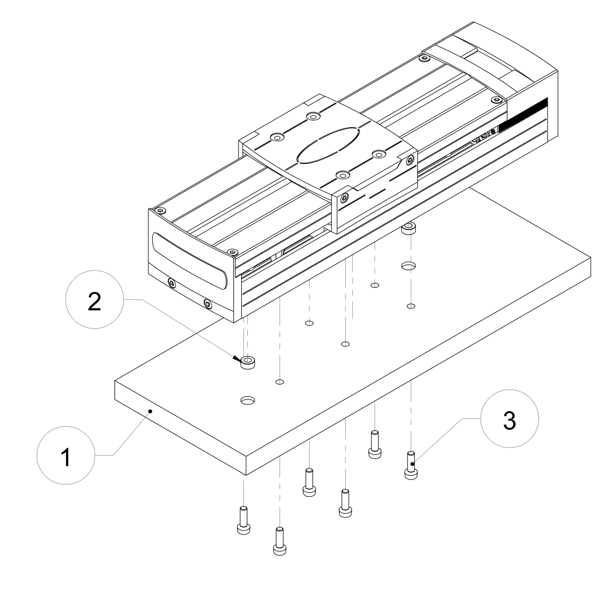

### Verschraubung von unten

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/INTAX_BefestigungVonOben_123.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/INTAX_Abmessungen_Detail_123.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

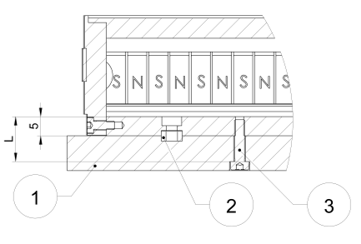

<table data-header-hidden><thead><tr><th width="67" valign="top"></th><th valign="top"></th></tr></thead><tbody><tr><td valign="top">1</td><td valign="top">Grundplatte</td></tr><tr><td valign="top">2</td><td valign="top">Zentrierring D6</td></tr><tr><td valign="top">3</td><td valign="top">Schrauben M3, Gewindetiefe max 5mm</td></tr></tbody></table>
{% endcolumn %}
{% endcolumns %}

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Verschraubung von oben

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

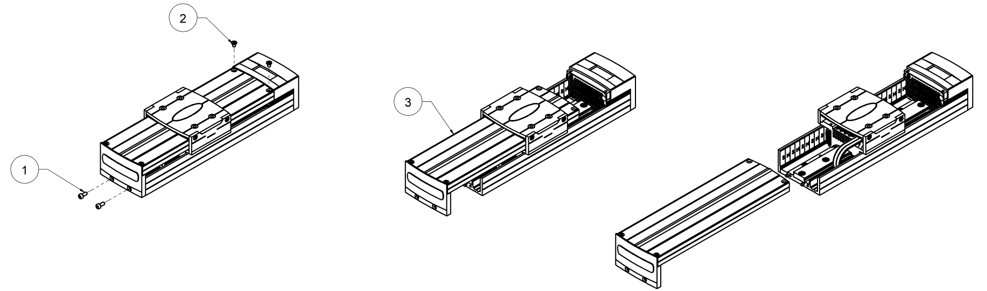

#### Demontage Abdeckung seitlich

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/INTAX_Offen.png" alt=""><figcaption></figcaption></figure>

<h4 align="right"></h4>
{% endcolumn %}

{% column %}

<table data-header-hidden><thead><tr><th width="64" valign="top"></th><th valign="top"></th></tr></thead><tbody><tr><td valign="top">1</td><td valign="top">Die zwei seitlichen Schrauben lösen</td></tr><tr><td valign="top">2</td><td valign="top">Die zwei oberen Schrauben lösen</td></tr><tr><td valign="top">3</td><td valign="top">Die Abdeckung seitlich entfernen</td></tr></tbody></table>
{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<h4 align="right"></h4>
{% endcolumn %}

{% column %}

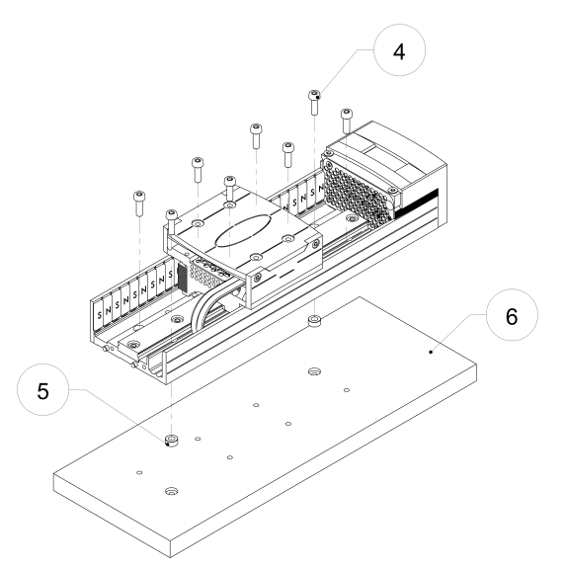

#### Schrauben von innen auf Grundplatte

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/INTAX_BefestigungVonOben_456.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

<table data-header-hidden><thead><tr><th width="63" valign="top"></th><th valign="top"></th></tr></thead><tbody><tr><td valign="top">4</td><td valign="top">Schrauben M3</td></tr><tr><td valign="top">5</td><td valign="top">Zentrierring D6</td></tr><tr><td valign="top">6</td><td valign="top">Grundplatte</td></tr></tbody></table>

Wichtig

* Schrauben dürfen nicht vorstehen
* Schrauben gut festziehen
* Keine Fremdteile im Motor
  {% endcolumn %}
  {% endcolumns %}

***

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

### Zentrierringe D6

{% endcolumn %}
{% endcolumns %}

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/Zentrieringe_d6.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}
Aussen Ø6 H7 / M4 / H2.8
{% endcolumn %}
{% endcolumns %}


---
