# Leistungsdaten

## Dynamik

| Load on Carriage \[g] | Max. Acceleration amax \[m/s²] |
| --------------------: | -----------------------------: |
|                   100 |                             70 |
|                   200 |                             50 |
|                   500 |                             30 |
|                  1000 |                             15 |

***

## **Motorkennlinien**

| INTAX® | Supply Voltage \[V DC] | Max. Travel Speed \[m/s] |
| ------ | ---------------------: | -----------------------: |
| Tx F08 |                     12 |                        1 |
| Tx F08 |                     24 |                        2 |
| Tx F08 |                     36 |                        2 |

***

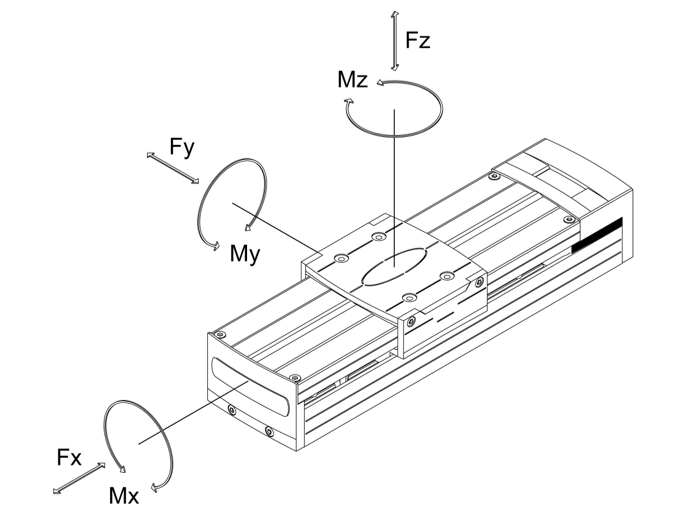

## Mechanische Belastbarkeit

{% columns %}
{% column %}

<figure><img src="https://raw.githubusercontent.com/JennyScience-AG/tech-images/main/INTAX_Mechanischegenauhigkeit.png" alt=""><figcaption></figcaption></figure>
{% endcolumn %}

{% column %}

| LINAX® Lxs F120 | Belastung maximal |
| --------------- | ----------------- |
| Mx              | 10 Nm             |
| My              | 4 Nm              |
| Mz              | 4 Nm              |
| Fy              | 1'370 N           |
| Fz              | 1'370 N           |

Wirken gleichzeitig mehrere Kräfte und Momente auf den Antrieb, muss nebst Einhaltung der einzelnen Maximalbelastungen die nachstehende Gleichung erfüllt sein:

$$
\frac{|Fy|}{Fy\_{\text{max}}} + \frac{|Fz|}{Fz\_{\text{max}}} + \frac{|Mx|}{Mx\_{\text{max}}} + \frac{|My|}{My\_{\text{max}}} + \frac{|Mz|}{Mz\_{\text{max}}} \leq 1
$$
{% endcolumn %}
{% endcolumns %}

***

## Lebensdauer

{% columns %}
{% column width="50%" %}

{% endcolumn %}

{% column width="50%" %}

#### Empfehlungen

Massnahmen welche die Lebensdauer verlängern:

* Trajektorien mit Kurvenprofil, anstelle Trapezprofil vorgeben (XENAX® Servocontroller, Defaultwert S-Kurven Profil = 20%)
* Dynamik immer nur so hoch wie notwendig
* Nicht Taktzeitrelevante Bewegungen langsamer ausführen.
* Verhindern dass Schmutzpartikel in die Führung gelangen.
  {% endcolumn %}
  {% endcolumns %}

{% columns %}
{% column %}

{% endcolumn %}

{% column %}

* Wartungsempfehlungen im [Wartungskapitel ](/motion_systems/motion-systems-de/linax/lxc/installation-und-wartung.md)beachten
  {% endcolumn %}
  {% endcolumns %}


---
